Aain SM2871, 12V 12000-lb, Truck SUV Winch Kit With Speed Mount And Remote Control

Aain

  • $339.00
    Unit price per
Shipping calculated at checkout.
Free shipping for all items Up to 150 lbs!

Only 0 left!
  • Standard duty winch with a steel rope and an 12000 lb. capacity; Ideal for 3/4 and 1-ton pickup trucks and all types of large frame rigs
  • Features IP67-rated waterproof construction with wired options, and one-piece cast-aluminum tie-plate
  • Technical Specification: 6.0 HP motor, 3-Stage Planetary Gear System, Stainless Steel Hardware, Dynamic Braking System, 1 Solenoid Mounting Options
  • 12000 LBS capacity, Ideal for two-door jeeps and light suvs for daily pull. Suitable for all kinds of harsh environment
  • Accessories:1 Clevis Hook × 1 Bolts Set,1 Wire Cables × 1 Control Box,1 Wired Remote Controller × 1 Hawse Fairlead
    See more product details

    From the manufacturer

    Recover a stuck vehicle, haul timber or load a boat with this powerful auto winch. The motor stays cool while the 3-stage planetary gear system provides fast line speed. Featuring an automatic load-holding brake for safety, this electric winch is a must-have for your next off-road adventure.

    • 12000lbs Features and Specification:
    • Single line rated pull: 12000lbs(5454kgs)
    • Motor: 6.0hp/4.5kw, series wound
    • Control: Remote switch
    • Gear train: 3 stage planetary
    • Gear reduction ratio: 265:1
    • Braking: Automatic load-holding brake
    • Battery: Recommended 650CCA
    • Color: Black Matte Spray
    • Weight: 92lbs(42Kgs)
    • Drum size: Diameter 2.5"(63.5mm) x length 9.6"(224mm)

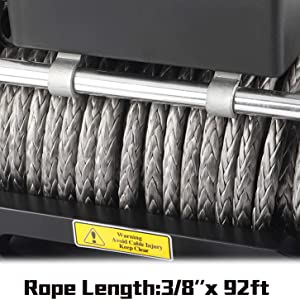

    • Cable: 3/8"(9.5mm) x 91.86'(28m)
    • Cable type: Steel Rope
    • Fairlead: Hawse
    Coating Electric Winch Kit 12V DC with Synthetic Winch Rope (3/8" Diameter x 92ft Length,Pulling Capacity 12000 lb)

    Powerful 6-horsepower motor, completely waterproof, specially designed to match any efficient 3-stage planetary gear train, providing fast, quiet, and reliable pulling/lifting force of 12,000 pounds, which can help you get rid of trouble.

    The large-diameter winch drum reduces the degree of steel wear and the overall structure. This 91.86-foot (28m) steel cable is strong enough to withstand huge pressure, and is more reliable and durable when used or replaced on site.

    The surface of the car winch is made of durable stainless steel, with good sealing and corrosion resistance.





    Product Description

    Waterproof: IP67 Rating

    Rated line Pull (single): 12000 lbs (5443.1kgs)

    Motor: 6.0hp Series Wound

    Control switch: wired control

    Gear Train: 3-Stage Planetary

    Gear Ratio: 265:1

    Clutch: Sliding Ring Gear

    Brake: Mechanical full load brake

    Rope guide: aluminum rope guide

    Nylon rope: 9.5mm x 28m

    Finish: Textured Black

    Weight: 27Kgs (59lbs)



    Technical Details

    Manufacturer AAIN
    Part Number SM2871
    Item Weight 59 pounds
    Package Dimensions 23.6 x 11.8 x 11 inches
    Item model number SM2871
    Item Package Quantity 1
    Included Components Electric Winch Kit
    Batteries Required? No
