AA038 Heavy-Duty Steel Air Hose Reel With 3/8'x 25ft Retractable Air Hose Reel For Wall Mount Auto Rewind Hose-Reel,Industrial Grade Rubber Hose,Black
- This retractable air hose reel is designed with an automatic water connection that is fast, convenient and saves time and effort
- Our air hose reels are equipped with a ratchet lock mechanism that locks the air hose in 9 locking positions so you can lock the air hose to the desired length.
- Flexible all day, our durable retractable air hose reels 3/9 can be wall, ceiling or floor mounted, hardware not included
- This duct reel measures 3/8" x 25" (~1.9 x 63.5cm) hose 11.0" (~27.9cm), 4.8" (~12.1cm) wide and 12.1" (~31.9cm) high
- High quality retractable air hose reel, rated at -20°C, max. 61°C, material includes assembled hose, adjustable hose plug and mounting bolts
3/8"x 25FT Premium Heavy-Duty Retractable Air Hose Reel
The REEL8 of Air Hose Reel pairs with your air compressor to eliminate tangled air hoses and reduces clutter in your shop or garage.
The Aain Air Hose Reel pairs with your air compressor to eliminate tangled air hoses and reduce clutter in your shop or garage.
The air hose reel allows you to manage 25 feet of hose.
Steel construction for a secure mounting to the wall.
Auto Rewind retractable ratchet action allows you to release as much hose as needed. The hose will remain securely in place until you reel it back.
Hybrid and retractable air hose with maximum air pressure: 300 PSI
Air inlet (female): 3/8 NPT
Air outlet (male): 3/8 NPT
Product Dimensions: 11.0 inch long, 4.8 inch wide and 12.0 inch high
Hose Temp Rating: -4°F ( -20°C) to the highest of 140°F (60°C)
The air hose reel allows you to manage 25 of feet hose

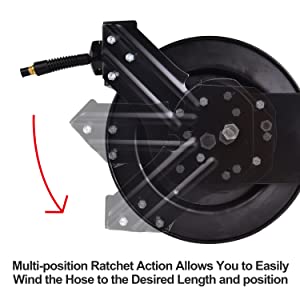

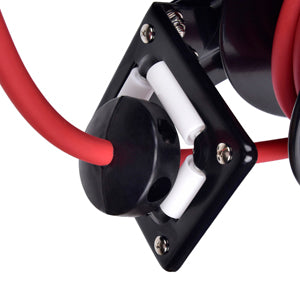

Non snag rollers help reduce hose wear. Multi-position ratchet action allows you to easily wind the hose to the desired length.
Steel construction for a secure mounting to the wall.
Professional quality steel construction. Heavy duty base provides secure support. Mount to the wall, celling, or floor.
Precision machined, full flow, swivel, solid brass fittings. 300 Max PSI

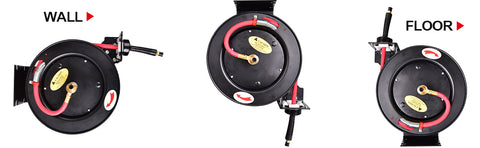

Air hose reel can be assembled on the wall, ceiling or floor.
Installation of Reel
1. Make a paper template modeled after the one above.
2 The Reel may be installed on the wall, floor, or ceiling (at least ten feet above the floor).
3. Remove the bolts that attach the guide roller bracket to the support post to re-position the bracket for the appropriate location. Replace bolts and tighten.
4. Drill holes [o accommodate 1/2 inch bolts (not included). Make sure you are drilling into a solid backing, or use the appropriate hardware o anchor in the bolts.
5. Mount reel and secure the four bolts (not included) through the 1/2" holes in the bracket.
Adjustment of Spring Tension
1. Pull out six feet of hose.
2. To increase tension, wrap the pulled hose one time around the drum.
3. To decrease tension, unwrap the hose one time from the drum.
4. Run the hose back through the guide and re- attach the hose stopper.
| Manufacturer | Aain |
| Part Number | AA038 |
| Item Weight | 25 pounds |
| Package Dimensions | 16.9 x 15.7 x 7.4 inches |
| Item model number | AA038 |
| color | Black and Red |
| Style | Retractable |
| Material | Metal |
| Installation Method | Floor Mount, Wall Mount, Ceiling Mount |
| Item Package Quantity | 1 |
| Included accessories | Air Hose Reels |
| Do you need batteries | No |
